- High-quality, robust construction. 2" foam-injected R-13 thermal break panel, hot-dipped galvanized still inner and outer panels, and a 4" minimum base rail for durability and performance
- Efficient fan and coil options. Supports customizable applications to meet specific cooling needs
- Lower power input fan array. Improves energy efficiency, reduces carbon emissions and improves overall PUE
- Trane-manufactured, factory-installed Symbio® 500 controller. Optimizes energy and system performance, ensuring reliable and efficient operations
- Pre-programmed BACnet®/IP or Modbus communication. Enables seamless integration with building management systems for enhanced monitoring and control
- Standard 2" MERV 8 high-efficiency filers. Improves indoor air quality, contributing to a cleaner system and environment
- Factory-installed piping with integrated water control valve. Reduces installation time and ensures precise and reliable cooling
- Platform flexibility. Standard and custom models available for specialized data center solutions tailored to the needs of unique applications
- Optional features. Additional options can include automatic transfer switch, harmonic filtration, controller capacitor backup, a rope leak detector, and fan block-off plates.
Trane® Fan Coil Wall for Data Centers
Model TCDC
-
Designed to your specs
The Trane Fan Coil Wall platform was designed to be adjusted to meet the specific needs of data center owners. We're committed continuously innovating to stay current withthe changing industry, working closely with you to collaborate and innovate throughout the design process.
-
Get the best solution for your space
For existing facilities with space or access constraints, we can deliver a two-piece unit designed to fit through your doors and enhance your footprint.
Or, the Trane Fan Coil Wall is available as a single-piece unit for easy installation and fast startup—ideal for new construction.
-
Dedicated manufacturing for tight timelines
We have dedicated production capacity for the Trane Fan Coil Wall. Not only does this give our manufacturing and design teams tremendous flexibility, it also helps to deliver competitive lead times.
-
Practice data center sustainability
The Trane Fan Coil Wall may be an excellent replacement for water-intensive evaporative cooling. They use air, instead of precious water resources. And because every unit is ideally designed and scaled to the application, it helps avoid excessive energy use and minimizes carbon emissions.
-
Stay with Trane for services
Trane provides all the support you’ll need throughout the lifecycle of your system. From full-system design through installation and ongoing maintenance and repairs, Trane provides professional services to maintain your data center fan wall performance.
| Stacked Configurations | Single Piece Configuration | Stacked/Single Piece Configurations | |||
| TCDC-360 | TCDC-430 | TCDC-500 | TCDC-450 | Specialized Sizes | |
| Height (in) | 162 | 162 | 212.5 | 144 | Up to 18' |
| Width (in) | 120 | 144 | 144 | 144 | Flexible |
| Depth | 60 | 60 | 60 | 60 | Flexible |
| 20°F Delta T (Airside) | |||||
| Supply CFM Range | 38400 - 60000 | 48000 - 750000 | 64000 - 100000 | 44000 - 68750 | Up to 110,000 |
| Cooling Capacity (kW) | 235 - 360 | 290 - 455 | 390 - 610 | 268 - 420 | Flexible |
| 22°F Delta T (Airside) | |||||
| Supply CFM Range | 38400 - 60000 | 48000 - 75000 | 64000 - 100000 | 44000 - 68750 | Up to 110,000 |
| Cooling Capacity (kW) | 258 - 404 | 320 - 505 | 430 - 670 | 322 - 460 | Flexible |
Video

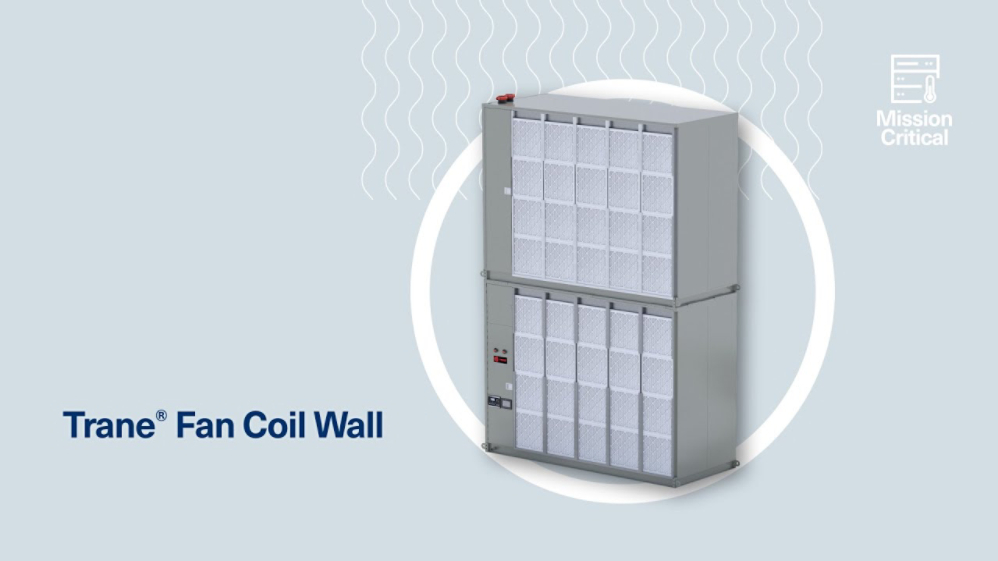

Discover the Trane Fan Coil Wall for Data Centers and Server Rooms
The Trane Fan Coil Wall for data centers is the cooling solution that's built for performance and tailored to your needs. In the rapidly evolving data center industry, flexibility matters. Offering the balance between footprint and cooling power, the Trane Fan Coil Wall is engineered to efficiently maintain precise temperature in server rooms. These units are installed at the transition between white and gray spaces, helping mission-critical data center uptime while reducing energy consumption. We’ve allocated dedicated production capacity for the Trane Fan Coil Wall at our Fort Smith, Arkansas, facility. Not only does this give our manufacturing tremendous flexibility, it also helps to deliver competitive lead times.
