TRACE® 3D Plus Load Design is the next evolution of the globally used and trusted TRACE® 700 Load Design software. This 3D design platform makes accurately sizing your HVAC systems faster and easier at any desired level of fidelity. We've taken our 50 years of HVAC systems design and software simulation knowledge and combined it with the U.S. Department of Energy's state-of-the-art EnergyPlus simulation engine. The result is a platform that makes right sizing HVAC systems intuitive and visually dynamic with an easy to understand workflow that's less error prone. Try the new TRACE 3D Plus platform today and get accurate sizing results in a fraction of the time.
The Latest Version 3 Software Update is Here!
Expand your cabilities with the latest from TRACE 3D Plus in our complete software solution, including Load Design AND Energy & Economic Analysis features.
Upgrade to the full version software today to get these enhancements:
New ground loop integrations with GLHE Pro and GLD
software including:
- Exporting ground loop sizing
information based on your TRACE 3D Plus model
- Importing
detailed ground loop parameters for accurately simulating ground loop
system designs
Expanded availability control options are now available for multiple systems and zone dedicated outdoor air systems.
Improved window creation including:
- Rotating and
moving walls without losing already placed windows
- Band
windows that now adjust to wall movements and changes in size
PLUS come try our newly released Advanced Analytics feature. This Candidate Feature has matured into a standard feature and is ready for prime time!
Don’t miss dozens of additional performance and quality improvements across the application.
Generate Design Models Quickly with Full Building Templates

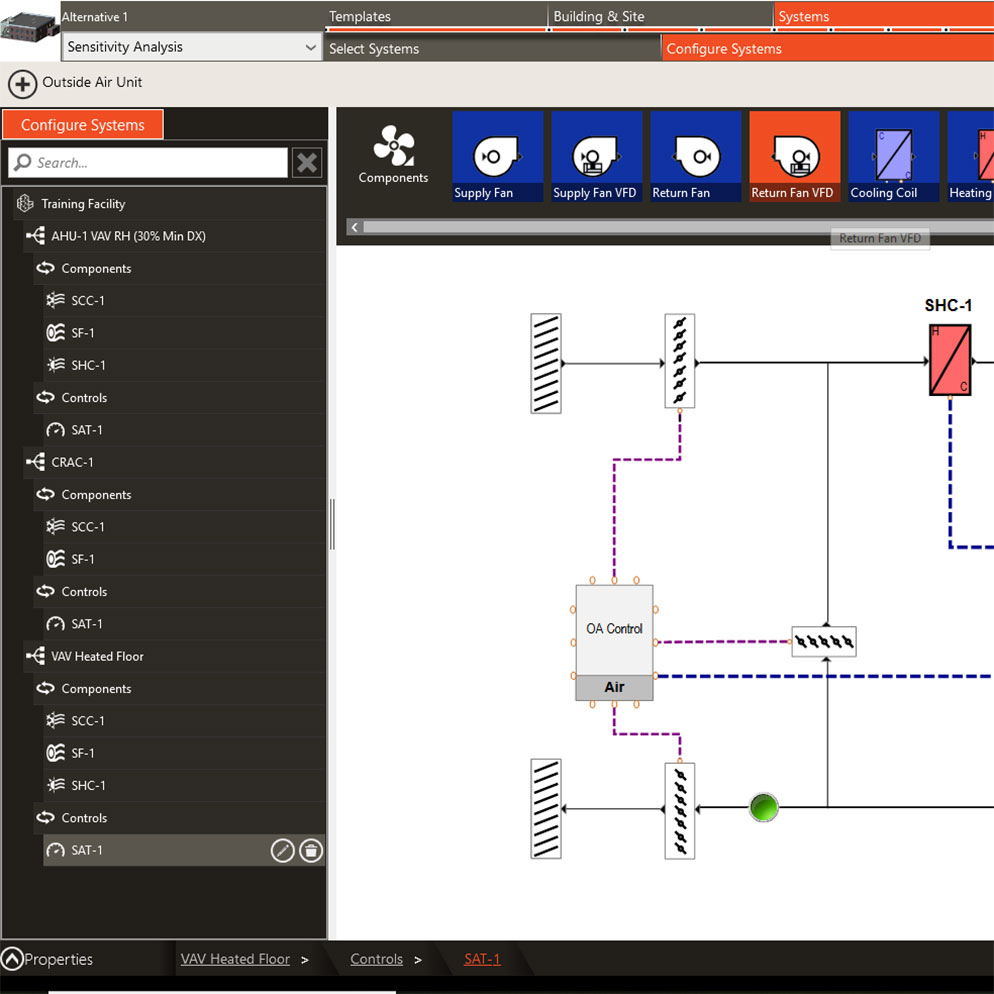

Enjoy the same intuitive ease and intelligent defaults that made TRACE 700 so popular while the schematically configurable system/plant layout and control provides a deeper level of customization to match real world design.
Save even more time on every project with the extended library and template architecture to include dozens of full building templates that make getting quick and highly accurate results for most commercial building types 30 to 40% faster than its predecessor.
Optimize Design Time with Expanded Asset Library
The thousands of built-in libraries and templates were created by researching hundreds of industry standards, studies completed by national labs or other trusted industry resources. The 3D building elements are infused throughout the interface with the full breadth of the libraries and templates for an unparalleled design experience that can be visually verified.
And the best part is that all load design models are completely scalable and seamless should the need arise for an upgrade to the full energy or economic analysis platform!
Push your Designs Beyond the Industry Standard
TRACE 3D Plus does more than just spit out ASHRAE Heat Balance toolbox load calculations. TRACE integrates Trane’s vast industry experience and considers worst case design of every component in the building model to give the modeler the ultimate control of all design considerations or factors of safety.
Whether modeling today’s sophisticated radiant designs, complex VRF configurations, or high performance VAV systems, TRACE 3D Plus will help guide the designer through the process.
Lean on World Class Support Teams
TRACE 3D Plus is sold as a Software as a Service (SaaS) package with annual license renewals. The world-class support that you have come to rely on is now more robust and offers even more ways to interact, including a searchable online knowledge database and in-depth online training. As always, it is backed by a team of support engineers to help you migrate to this new software program.
