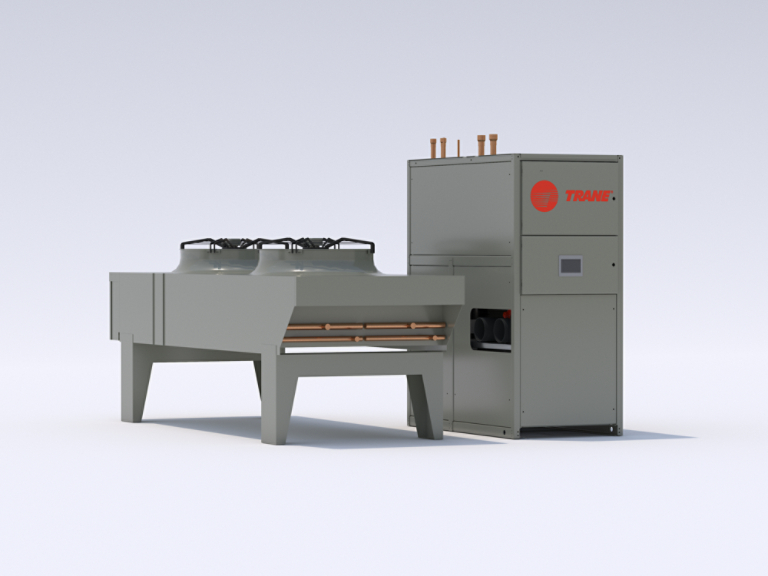

Thermafit™ Modular Air-Cooled Split System

Thermafit air-cooled split system chillers offer an efficient, space-saving modular design

Overview

Thermafit Air-Cooled Split System: Flexible & efficient.

Modular design for easy customization, superior performance in sub-zero temps, and space-saving split components for versatile cooling solutions.

Capacity:
- 15-80T Modules
- 1-12 Modules per bank
Application: Cooling Only with Remote Air-Cooled Condenser
Compressor: Dual, Fixed Speed or Variable-Speed Options
Refrigerant: Next-gen, low-GWP R-454B

Modular Design for True Flexibility

The Thermafit Air-Cooled Split System's modular design allows for easy scalability and customization. This flexibility ensures that the system can be tailored to meet specific cooling needs, making it ideal for a wide range of applications. Each module operates independently, providing operational redundancy and enhancing reliability.
Superior Cold Climate Performance

Designed for efficient sub-zero performance, Thermafit operates reliably down to -20°F. With the evaporator indoors, freeze protection steps needed for outdoor units—like glycol, draining, or heat tracing—are eliminated, simplifying winter operation in cold climates.
Space-Saving Split Component Design

The split component design of the Thermafit system saves valuable space, making it suitable for installations with limited room. By separating the chiller and condenser, the system can be more easily integrated into existing setups, providing a compact and efficient cooling solution without the need for glycol.

Product Information

Key Features

Compressors: Efficient and reliable performance.
Remot Air Condenser
Fluid Headers: Ensures proper fluid distribution and system balance.
Electrical Panels: High-voltage panel for power distribution and low-voltage control panel for system management.
Touchscreen Interface: User-friendly control and monitoring.
Optional Features:
- Variable speed drive on lead compressor for enhanced efficiency.
- Low sound acoustic panels and compressor wraps for noise reduction.
- Flooded condenser for effective operation in ambient temperatures down to -20°F.

Model Specifications

Capacity: 15-80 tons per module
Operating Map: Chilled fluid 15°F to 65°F, -20°F to 115°F ambient
Compressor: Two scroll compressors, dual circuit per module
Refrigerant: Next-gen, low-GWP R-454B

Product Literature

Brochures

Catalogs

Thermafit™ Modular Product Catalog

TF-PRC001-EN

IOM

Thermafit™ Modular Split System with Remote Condenser Model MAR IOM

TF-SVX002-EN
