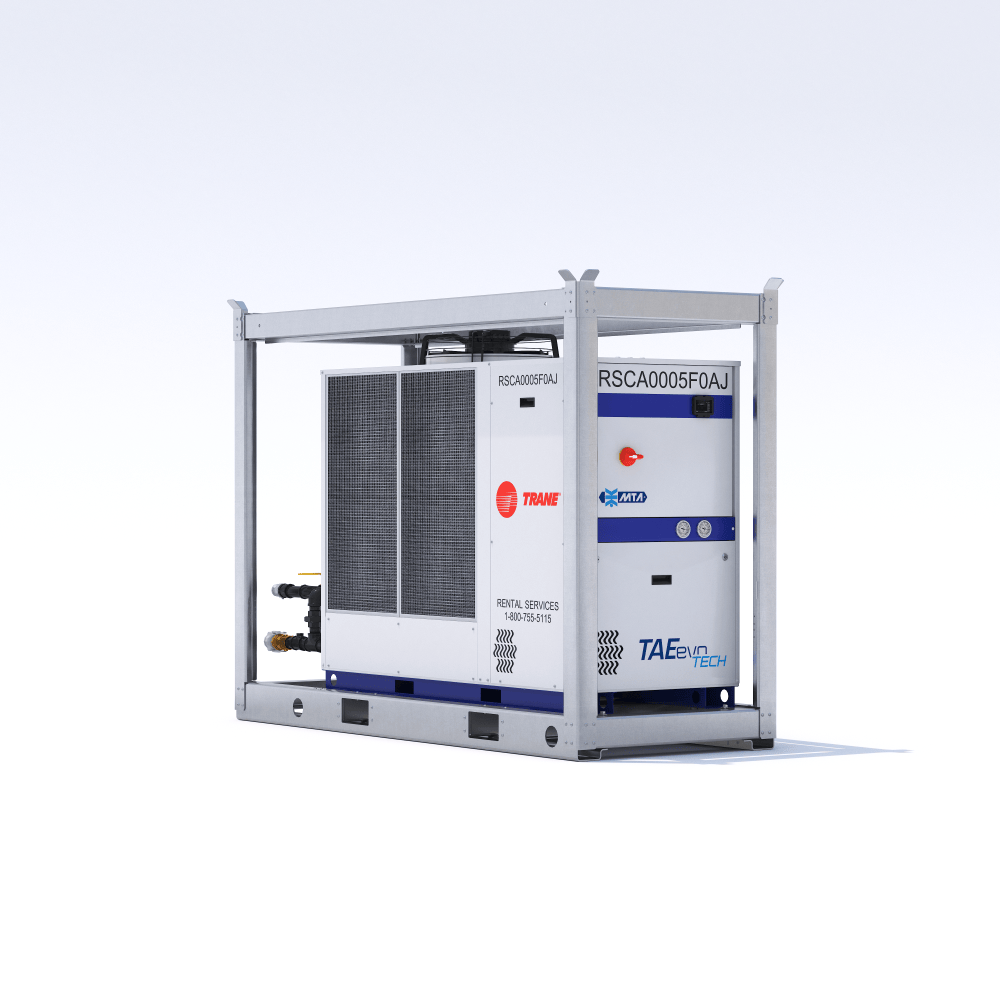

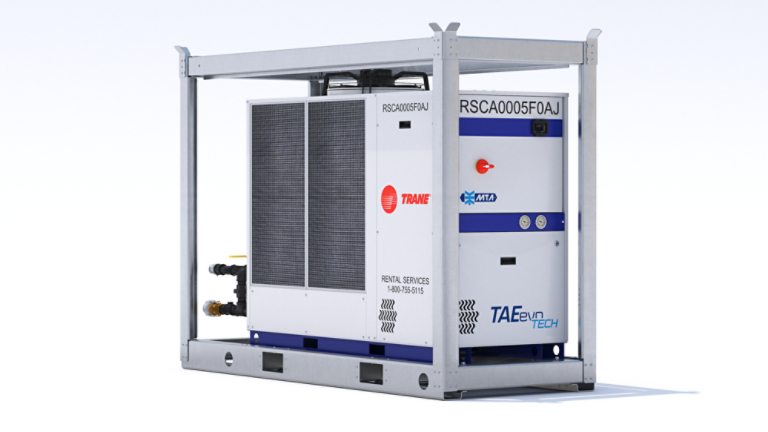

Process Cooling Chiller
- Capacity Range: 3 to 40 tons
- Scroll Compressor
- Onboard Integral Pump
- Heat Exchanger-allows a high level of reliability
- 460/3/60 Hz Electric
Air-Cooled Chiller Rentals
Ideal when speed, ease of installation and reliability are your primary concerns.
- Equipped to provide quick restoration of cooling in emergency and planned shutdown situations
- Applied in industrial and commercial markets to provide cooling for both process and comfort applications
10-550 ton
- Integral pumps, circuit breaker or fused disconnect, 0° - 71°F Water
- 3-40 ton Process Chiller

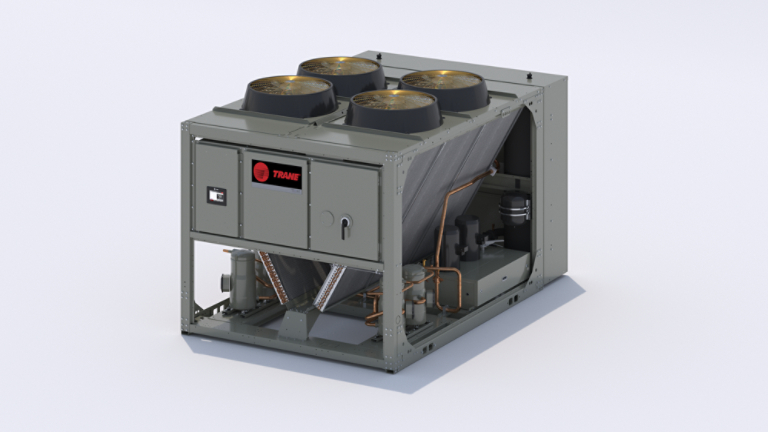

CGAM Air-Cooled Scroll Chiller
- Capacity Range: 25 to 125 tons
- Refrigerant: R-410A & R-454B
- Ambient Operating Temps: -20–125°F
- Chilled Water Operating Temps: 0-65°F
- Industrial Design for Crane, Rigging, and Transportation
- Integral on Board Pump w/ By-Pass
- 460/3/60 Hz Electric
Series R® Helical Rotary Chiller
- Capacity Range: 155 to 500 tons
- Refrigerant: R-134a & R-513A
- Ambient Operating Temps: 0–125°F
- Chilled Water Operating Temps: 20-71°F
- Industrial Design for Crane, Rigging, and Transportation
- Integral on Board Pump w/ By-Pass
- 460/3/60 Hz Electric

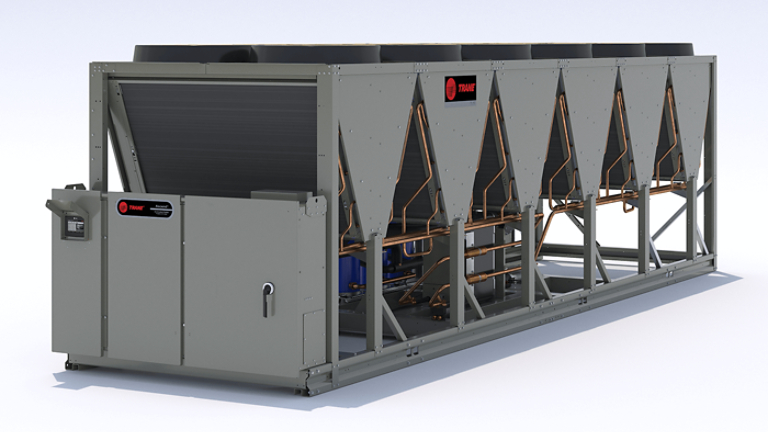

Ascend™ ACSA Air-Cooled Chiller
- Capacity Range: 150 to 550 tons
- Refrigerant: R-513A
- Ambient Operating Temps: 0–125°F
- Chilled Water Temp Range: 25–65°F
- Screw Compressor Integral on Board Pump w/ VFD and Piping Bypass
- 460V/3Ph/60Hz

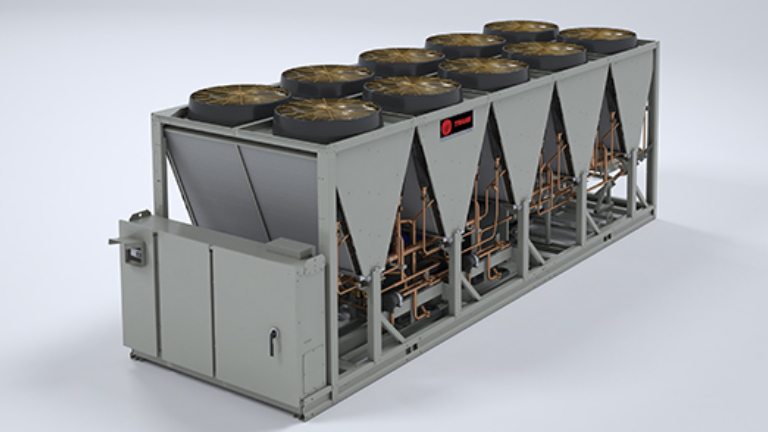

Ascend™ ACX Air-Cooled Heat Pump
- Capacity Range: 200 tons
- Ambient Operating Temps: 0–95°F
- Hot Water Temp Range: 68°F–140°F
- Refrigerant: R454B
- Scroll Compressor
- Integral on Board Pump w/ VFD and Piping Bypass
- 460V/3Ph/60Hz
Water-Cooled Chiller Rentals
Modified to install easily to provide fast temporary backup or added capacity.
- Larger tonnage in a smaller footprint
- Ideal for large process and comfort cooling applications that require higher efficiency equipment
- Weatherized for outdoor use
225-1,000 ton
- Centrifugal R-123 & R-514A, circuit breaker or fused disconnect
Water-Cooled Helical Rotary Chiller
- Capacity Range: 450 tons
- Ambient Operating Temps: 34–104°F
- Chilled Water Operating Temps: 10-65°F
- Industrial Design for Crane, Rigging, and Transportation
- 460/3/60 Hz Electric
CenTraVac® Water-Cooled Chiller
- Capacity Range: 225 to 1000 Tons
- Ambient Operating Temps: 34–104°F
- Chilled Water Operating Temps: 40-65°F
- Industrial Design for Crane, Rigging, and Transportation
- 460/3/60 Hz Electric
Downloads
Process Cooling
-
Process Chiller—MTA Product Catalog
TEMP-PRC002*-EN
-
Sell Sheet
TEMP-SLB004-EN
CGAM, Series R—RTAC, RTAA, Ascend
-
Product Catalog—Temporary Air-Cooled Chillers
TEMP-PRC010*-EN
Series R—RTAC, RTAA
-
Installation, Operation, Maintenenance (IOMs)—RTAC
RTAC-SVX005*-EN
CTV, Helical Rotary Chiller—RTHD
-
Product Catalog—Temporary Water-Cooled Chillers
TEMP-PRC009*-EN
Need Rental Help? Contact Us
Trane Rental Services Value
- Extra cooling, short-term replacements, temporary equipment to cool, heat or power
- Fast, reliable and cost-effective solutions when you need them
- Keep your business operational while you repair, replace or upgrade your existing system
- Scalable cooling, heating, and power for unique applications, unusual situations and special events
- Team of dedicated account managers, engineers, service technicians and logistics professionals
-
- Capacity Range: 3 to 40 tons
- Scroll Compressor
- Onboard Integral Pump
- Heat Exchanger-allows a high level of reliability
- 460/3/60 Hz Electric
