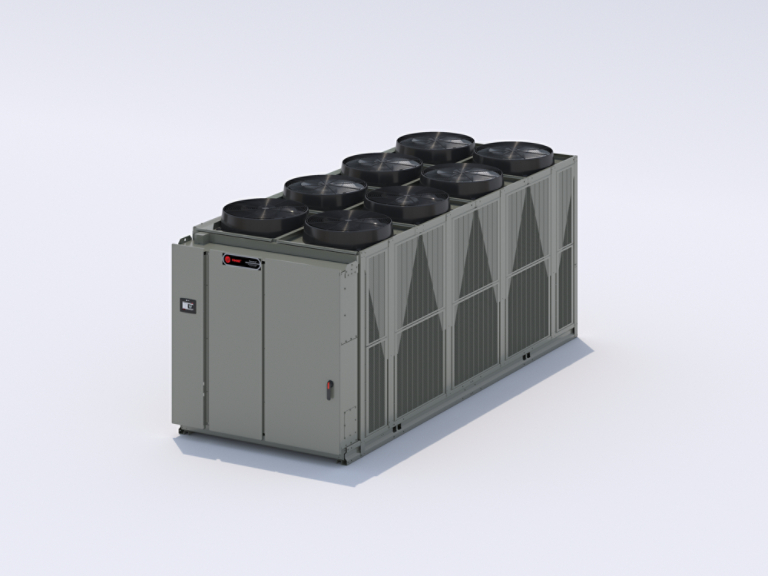

ACR
Ascend® Air-Cooled Chiller with Integrated Free Cooling
ACR
Ascend® Air-Cooled Chiller with Integrated Free Cooling
An amazing combination of high-energy efficiency and quiet performance.
Now enabled by Symbio® 800 unit controller
- Capacity Range: 150 to 550 tons
- Refrigerant: Low-GWP R-513A
- Compressor Design: Helical rotary screw
- Energy Efficiency Rating (EER): IPLV: 19.7-21.6
- Integrated Free-cooling option takes advantage of cooler ambient air temperature to reduce energy consumption
Close-up of businessperson analyzing accounting document at desk in office
An Amazing Combination of High Energy Efficiency and Quiet Operation
The ACR model, part of Trane’s Ascend® line of air-cooled chillers, offers an amazing combination of high energy efficiency and quiet performance. ACR models use advanced technologies like InvisiSound® acoustic-reduction treatments, compressors with variable volume-ratio capability, permanent magnet motors and premium efficiency drives to help achieve low sound levels, maximize efficiency under all operating conditions, lower utility bills and save money.
industrial factory at night
Specially Designed for Demanding Applications
We designed ACR chillers especially for easy integration with facilities that have specialized requirements. And, an optional harmonic filtration system utilizes a matrix filter design to meet the requirements of IEEE® 519, reducing harmonic distortion to 5 percent or less total demand distortion (TDD). Rapid Restart® features, standard in our air-cooled chiller portfolio, allow the chiller to quickly regain full operational capacity after a power interruption, so mission-critical applications can continue with minimal interruption.
Free Cooling? We’re cool with that.
As a matter of fact, Trane has been integrating free cooling directly into our chillers for a long time. It only makes sense to tap free colder outdoor air to cool the environment inside your building. When you can avoid running the compressor keeping people comfortable is more sustainable, and energy and operating costs are lower. Trane has free cooling chillers covered.
Controls
Optimize operations with our advanced controls
Optimize operations with our advanced controls
Keeping your indoor temperatures in the comfort zone is virtually hands-off with our chiller’s intuitive user interface enabled by our Symbio® 800 controller. Symbio 800 features open standard protocols, enabling seamless and secure integration with any building automation system, including Trane's Tracer SC+. Depending on your needs, the sysem is capable of connecting via BACnet™ over IP or Air-Fi® wireless (BACnet/Zigbee). Post-installation, connect with our energy analysis and 24/7 monitoring services to assure your chillers are continuously optimized for efficiency and uptime.
Services
2018 Trane Brea California 0753_932x932_Services-Operate Maintain and Repair-Rental.jpg
Rental Solutions
Our approach to temporary HVAC and power goes beyond the typical drop-off. We design, deliver, install and even monitor safe and efficient rental solutions. Short term, long term, chiller, generator, or portable AC unit, we have the fleet and people where and when you need them.
Product Literature
Quick Reference Guide
-
ACR BACnet® and Modbus® Integration GuideBAS-SVP045*-EN2MB
-
ACR LonTalk® Integration GuideBAS-SVP046*-EN722KB
-
ACR TD7 User GuideAC-SVU001*-EN2MB
Brochure
-
Ascend® Chiller Model ACRAC-SLB001-EN
-
Air-Cooled Chillers Sales BrochurePROD-SLB049-EN
-
Trane® Free Cooling ChillersRF-SLB016-EN
Catalog
-
Ascend® Air-cooled Chiller Model ACR Series CAC-PRC005*-EN
Installation Operation Maintenance (IOMs)
-
Ascend® Air-cooled Chillers Model ACRAC-SVX001*-EN
-
Ascend™ Air-Cooled Chiller Model ACR Series CAC-SVX003*-EN
