- Three independent brazed plate heat exchangers for each loop - cooling, heating, source
- Tandem Compressor: Enhances efficiency and reliability by using dual compressors.
- Automatic isolation valves for variable flow operation
- Integral hydronic header with factory installed strainer, automatic isolation valves, flow switch, and temperature sensors, reducing field piping and complexity
- Optional Features: Includes fused or non-fused disconnect switch, power distribution panel, BMS integration, and acoustical panels for customization and enhanced functionality.

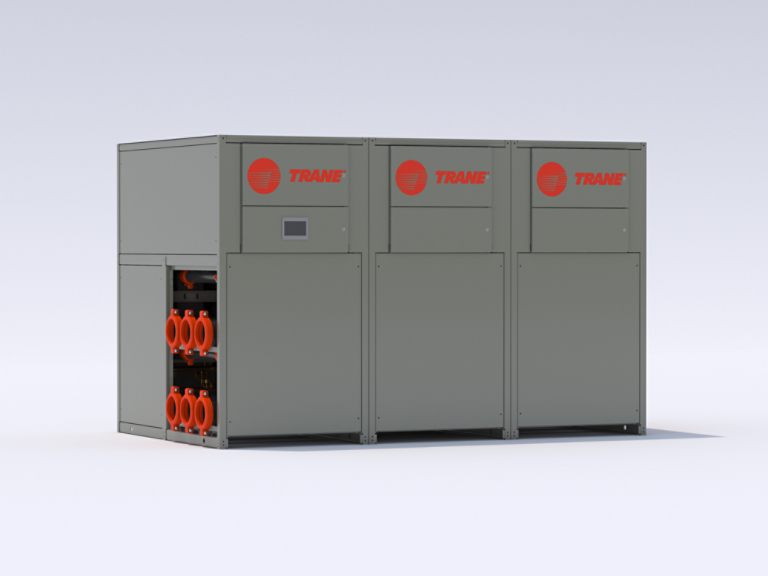

Thermafit™ Modular Water-Source Multi-Pipe
Model MWS
Overview
Modular heat pump chiller for flexible, reliable comfort.
Thermafit™ MWS offers scalable design, simultaneous heating/cooling, and operational redundancy for optimal performance and reliability in multi-pipe systems.
- Capacity:
- 30-60 ton modules (432-842 MBH)
- 3-10 modules per bank
- Application: Simultaneous cooling and heating
- Compressor: Tandem-set fixed-speed scroll
- Refrigerant: Next-gen, low-GWP R-454B
-
Modular Design for True Flexibility
The Thermafit™ MWS Multi-Pipe features a modular design, allowing for easy scalability and customization to meet specific application needs. This flexibility ensures optimal performance and adaptability, making it ideal for various water-source multi-pipe systems.
-
Simultaneous Heating and Cooling
With the ability to provide simultaneous heating and cooling, the Thermafit™ MWS optimizes comfort year-round. Independent setpoints for heating and cooling ensure precise temperature control, enhancing efficiency and reducing energy consumption.
-
Operational Redundancy for Reliability
The Thermafit™ MWS bank of modules creates operational redundancy, ensuring continuous performance even if one module fails. This feature enhances system reliability and minimizes downtime, providing peace of mind for critical applications.
Product Information
- Capacity Range: 30-60 tons (432-842 MBH) per module, (3-10 modules per bank), 450-7200 MBH
- Operating Map:
- Cooling only: Chilled water 42°F to 65°F (Source 60°F to 140°F)
- Heating only: Hot water 60°F to 140°F (Source 30°F to 70°F)
- Simultaneous: Chilled water 42°F to 65°F, hot water 60°F to 140°F
- Compressor: Tandem-set fixed-speed scroll
- Refrigerant: Next-gen, low-GWP R-454B
Product Literature
Product Catalog
FAQs
Your questions about modular water-source multi-pipe systems, answered.
Multi-pipe systems can provide 100% cooling, 100% heating, or simultaneous heating and cooling, allowing bank to control to independent chilled water and hot water setpoints. These systems have 3 fluid loops - cooling, heating, and geothermal.
During cooling mode, modules operate as standard water-cooled chiller and reject heat to the geothermal loop. In heating mode, modules reverse refrigerant flow and act as a water-source heat pump, extracting heat from the geothermal loop. In simultaneous mode, waste heat is captured from cooling cycle and repurposed to produce hot water.
Looking for parts?
FAQs
Your questions about modular water-source multi-pipe unit mws, answered.
Multi-pipe systems can provide 100% cooling, 100% heating, or simultaneous heating and cooling, allowing bank to control to independent chilled water and hot water setpoints. These systems have 3 fluid loops - cooling, heating, and geothermal. During cooling mode, modules operate as standard water-cooled chiller and reject heat to the geothermal loop. In heating mode, modules reverse refrigerant flow and act as a water-source heat pump, extracting heat from the geothermal loop. In simultaneous mode, waste heat is captured from cooling cycle and repurposed to produce hot water.
Related Products
-

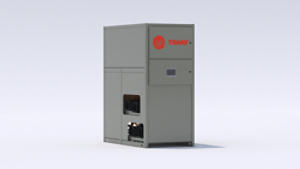

Thermafit™ Modular Water-to-Water Heat Pump Chiller
Model WXM
Efficient, all-electric Thermafit™ Water-to-Water Modular Heat Pump for heating and cooling. Ideal for geothermal and sustainability. -

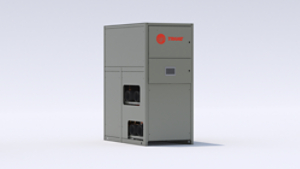

Thermafit™ Modular Water-Cooled Chiller
Model MWC
Thermafit™ MWC Chiller: Modular, energy-efficient water cooling with low-GWP refrigerants, optional heat recovery, and flexible design. -
Thermafit™ Modular Magnetic-Bearing Chiller
Model TACW
The Thermafit™ TACW Chiller offers compact, modular design, ultra-quiet operation, and high performance with low-GWP refrigerant. Capacity: 65-135T per module. -
Thermafit™ Modular Air-Cooled Split System
Model MAR
Thermafit Air-Cooled Split System Model MAR offers efficient cooling with a modular, space-saving design. Operates in sub-zero temps, capacity 15-80T. -
Thermafit™ Modular Air-to-Water Heat Pump
Model AXM
Trane Thermafit™ Modular Heat Pumps offer all-electric heating, 30 tons of cooling, precise temperature control, and enhanced energy efficiency. Discover more today! -

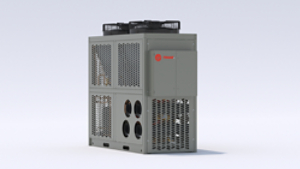

Thermafit™ Modular Air-Source Multi-Pipe
