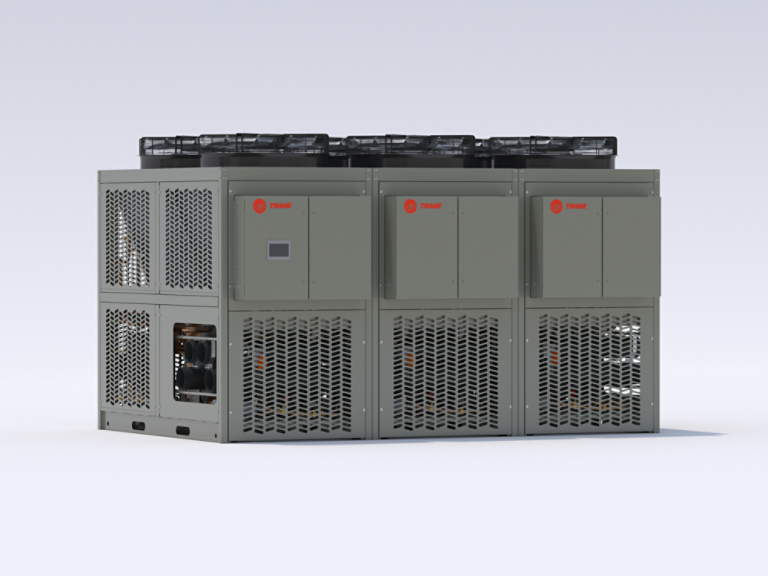

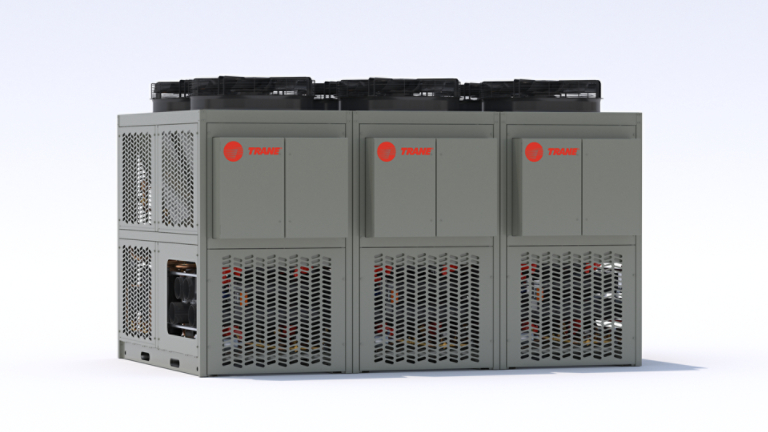

Thermafit® Air-Source Modular Multi-pipe

30 tons (433 MBH) per module
Minimum 3 modules, expandable to 300T (4330 MBH) bank
Provides all electric heating, cooling, and simultaneous heating & cooling
Available with environmentally friendly, low global warming R-454B
Vapor injection scroll compressor for cold climate operation (130°F leaving water temperature down to 0°F ambient temperature)
Supports variable flow pumping, improving overall system efficiency.
Lab-verified to provide reliable heating in outdoor ambient temperatures down to 0°F
AHRI 550/590 certified

Find a Local Sales Rep

Simultaneous heating & cooling

Reduce or eliminate the need for a separate boiler and chiller system to fulfill simultaneous heating and cooling needs with this all-electric, all-in-one solution.

Thermafit air-source modular multi-pipe units have a unique design that combines chiller, heat pump and heat recovery innovation. Satisfy the entire building's heating and cooling needs by independently operating the mode of each module in the bank, even if the loads are unbalanced.
8.2x more efficient

Thermafit air-source modular multi-pipe unit, model MAS delivers reliable electric heating, with up to 8.2 times greater efficiency than other forms of electric heating for maximum savings.

Thermafit modular design improves part-load performance, allowing 5-17% chiller bank turndown. It also supports variable flow pumping, improving overall system efficiency.
High-performing, extremely reliable

Lab-verified and backed by Trane's world-class system design and support, Thermafit air-source modular multi-pipe units provide reliable heating in outdoor ambient temperatures down to 0°F (-17°C). Advanced defrost algorithm stages modules to reduce temperature fluctuations for improved heating performance.

Vapor injection allows greater lift and hot water temperatures up to 140°F (60°C).

Brochure

Thermafit Air-Source Modular Multi-pipe Model MAS Sheet
ARTC-SLB014-EN

Download
Thermafit Modular Unit Product Line Brochure
ARTC-SLB005-EN

Download

Catalog

Thermafit® Modulars
TF-PRC001*-EN

Download

Installation Operation Maintenance (IOMs)

Thermafit® Modular Air-Source Multi-pipe - Model MAS
TF-SVX001*-EN

Download
