Thermal Battery Storage Systems

Trane Thermal Battery™ systems are premier HVAC plants that provide a distributed resource for our changing grid. Their ability to store thermal energy enables your building to reliably modify HVAC operations to optimize for carbon reduction or energy cost savings.

Key Benefits:

Lower utility bills: Reduce peak electricity demand costs and shift energy use to less expensive and more efficient off-peak periods
Increased Sustainability: Support renewable energy by making it more dispatchable
Greater Agility: Enable flexible operation for a grid interactive building

How our Systems Work

Trane Thermal Energy Storage

Trane Thermal Battery systems are chiller plants enhanced with thermal energy storage. The chiller plant operates like a battery. It charges when excess or inexpensive energy is available or when you can depend on renewables. It discharges when demand spikes, price is high or when the utility or grid operator asks for help meeting capacity.

Air-Cooled Chiller Plant

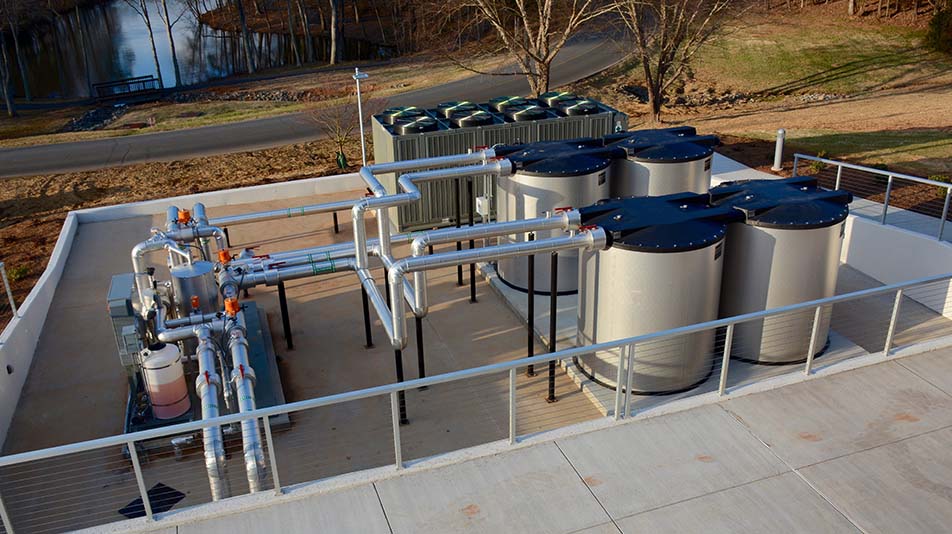

The Trane® Thermal Battery air-cooled chiller plant is a thermal energy storage system, which can make installation simpler and more repeatable, saving design time and construction costs. Trane offers pretested, standard system configurations for air-cooled chillers, ice tanks, and pre-packed pump skids integrated with customizable, preprogrammed system controls.

Thermal Battery Heat Pump for Water-Cooled Chillers

Storage Source Heat Pump

The all-electric Storage Source Heat Pump system leverages thermal energy storage to provide cooling and heating. It captures waste energy to eliminate traditional heating equipment that relies on fossil fuels.

Customized Solutions

Our experts draw on 30+ years of engineering experience installing more than 1 gigawatt+ of thermal storage to help you design the best solution for your needs. Combine the benefits of Trane’s industry-leading chillers and controls with best-in-class CALMAC® storage tanks.

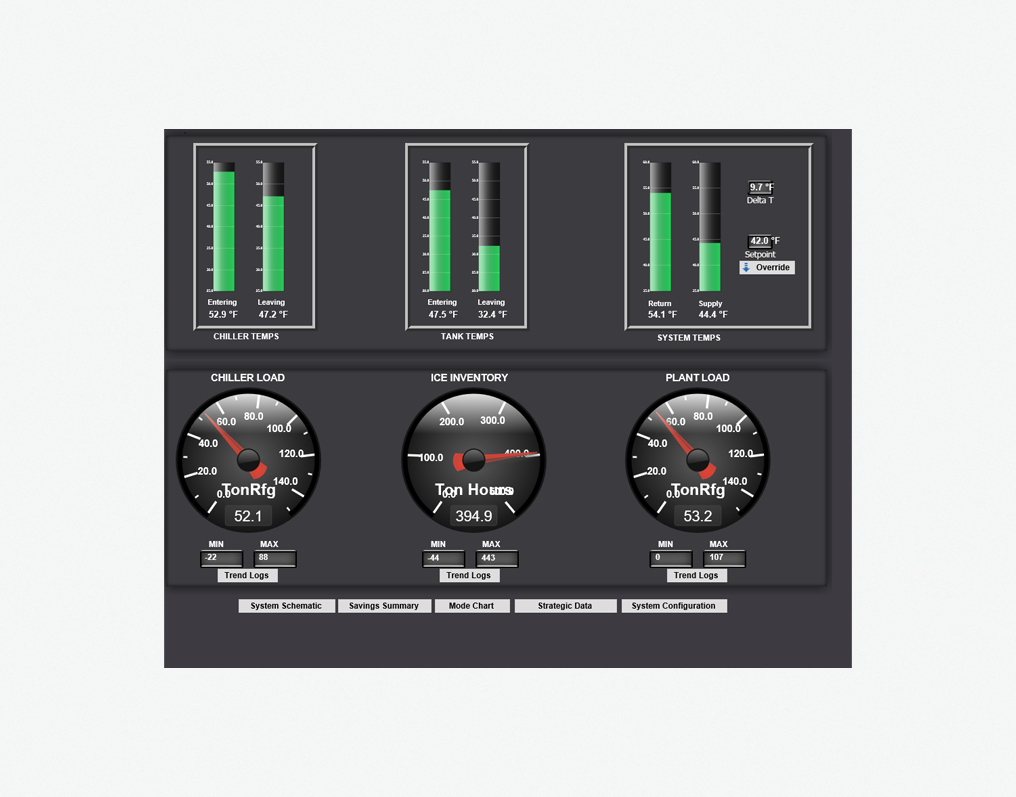

TC_energy storage trends and gauges resize.png

Optimize Your Control Strategy

Our assessment tools can help you choose the best control strategy for your application. You can depend entirely upon thermal storage to cool your building or leverage storage plus chillers.

Based on multiple factors — electric rates, building occupancy, carbon emissions and available footprint — we help you identify the best control strategy to reach your financial and sustainability goals.

Learn More about Controls

Explore System Components

Explore Compatible Chillers

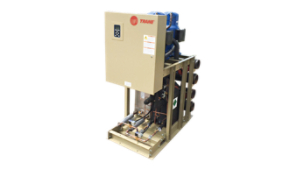

Cold Generator™ Scroll Chiller CICD Compact Series
At a glance
- Capacity range from 20 to 85 tons
- Reliable performance and optimized capacity from a compact, modular unit
- Overall footprint that is 27 percent smaller than similar products
Ascend™ Air-Cooled Chillers Model ACS
- Capacity Range: 140 to 230 tons
- Refrigerant: Low-GWP R-454B
- Compressor Design: Scroll with variable volume ratio
- Energy Efficiency Rating (EER): IPLV: 15.8-16.5
Sintesis® Air-Cooled Chillers
- Capacity Range: 115 to 500 tons
- Refrigerant: Low-GWP R-513A
- Compressor Design: Helical rotary screw
- Energy Efficiency Rating (EER): IPLV: 16.0-18.0 (high-efficiency)
- Enabled by Symbio® 800 unit controller
Scroll Chiller Model CGAM
- Capacity Range: 20 to 130 tons (60 Hz)
- Refrigerant: Low-GWP R-454B
- Energy Efficiency Rating (EER): IPLV: 13.7-16.6 (high-efficiency); 14.5-16.9 (extra-high-efficiency)
- Enabled by Symbio® 800 unit controller
Agility® Centrifugal Water-Cooled Chillers
- Capacity Range: 175 to 425 tons, 60/50 Hz
- Available with next-generation low-GWP R-513A refrigerant
- Best Full-load Efficiency: 0.52 kW/ton (at AHRI conditions)
- Best Part-load Efficiency: 0.31 kW/ton
CenTraVac Water-Cooled Chiller
- Capacity Range: 120 to 4,000+ tons, 60/50 Hz
- Refrigerant: R-514A and R-1233zd
- Best Full-load Efficiency: 0.4872 kW/ton (at AHRI conditions)
- Best Part-load Efficiency: 0.3055 kW/ton
- Compressor type: Centrifugal
- Low Pressure
Series R® Helical Rotary Screw Chillers
- RTWD chiller heat pumps feature expanded heating capabilities of up to 165° F (74° C) for boiler replacements in a wider range of applications
- RTHD can be configured to produce leaving evaporator solution temperatures as low as 5° F (-15° C) for industrial process cooling applications
- Symbio 800 serves as a launch point to connect to an array of Trane systems and services
- Tracer® SC+ building automation system features pre-engineered Chiller Plant Control, enhancing the rotation, staging and sequencing of multiple units to meet dynamic building loads.
- Robust helical rotary compressor design has fewer moving parts with premium bearings for superior alignment tolerance and overall reliability.
Series R® Helical Rotary Screw Models RTWD and RTHD
- RTWD chiller heat pumps feature expanded heating capabilities of up to 165° F (74° C) for boiler replacements in a wider range of applications
- RTHD can be configured to produce leaving evaporator solution temperatures as low as 5° F (-15° C) for industrial process cooling applications
- Symbio 800 serves as a launch point to connect to an array of Trane systems and services
- Tracer® SC+ building automation system features pre-engineered Chiller Plant Control, enhancing the rotation, staging and sequencing of multiple units to meet dynamic building loads.
- Robust helical rotary compressor design has fewer moving parts with premium bearings for superior alignment tolerance and overall reliability.
Ascend® Air-Cooled Chillers Model
- Capacity Range: 150 to 550 tons
- Refrigerant: Low-GWP R-513A
- Compressor Design: Helical rotary screw
- Energy Efficiency Rating (EER): IPLV: 19.7-21.6
- Enabled by Symbio® 800 unit controller
- Integrated Free-cooling option
